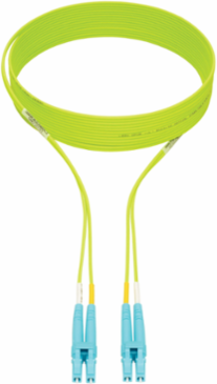

Tripp Lite N820-03M-OM5 OM5 Fiber Patch Cable 50/125, 3M (10 ft), LC Duplex, Lime Green
- MPN: N820-03M-OM5
- UPC: 037332224224
- PPN: TRP-N820-03M-OM5
CAD
$52.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
OM5 Fiber Patch Cable 50/125, 3M (10 ft), LC Duplex, Lime Green
Features
- Rated OM5 to offer a wideband 50/125 multimode fiber solution
- For 40/100 Gb speeds up to 300 meters (at 850 nm)
- Laser-optimized for use with cost-effective VCSEL light sources
- Lime green jacket for easy OM5 identification; 3 m (10 ft.) cable
- Backward compatible with OM3 and OM4 applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable
- Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution
- Experience Reliable Performance with Premium Construction
- Employ OM5 Cable for Backward Compatibility and Future Proofing
- Lifetime Warranty
Specifications
Additional
- Network Speed
- 10Gbps / 40Gbps / 100Gbps
- Number of Fibers
- 2
- Clad Diameter
- 125 micron
- Storage Temperature Range
- -20 to 60 °C (-4 to 140 °F)
- Cable Length
- 118.1 in. (9.8 ft / 3 m)
- Side A Connector Type
- LC Duplex (Male)
- Material
- Low-Smoke Zero-Halogen (LSZH)
- Compliance
- Meets IEEE 802.3ae, TIA LOMMF standards
- Color
- Lime Green
Optical ModeOM5
Core Diameter50 micron
Operating Temperature Range-20 to 60 °C (-4 to 140 °F)
Relative Humidity4% to 98% RH
Cable Outer Diameter1.9 ± 0.1 mm x 3.8 ± 0.2 mm
Side B Connector TypeLC Duplex (Male)
TechnologyMultimode
WarrantyLifetime limited warranty
