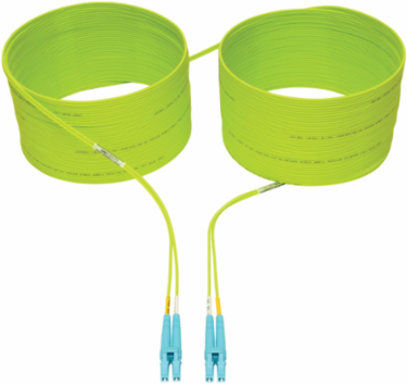

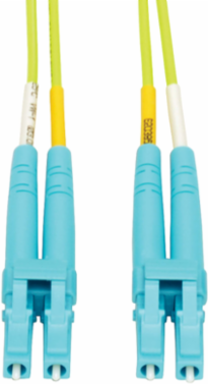

Tripp Lite N820-15M-OM5 100Gb Duplex Multimode Fiber Patch Cable 50/125, OM5, 15M (49 ft.), Lime
Tripp Lite N820-15M-OM5 100Gb Duplex Multimode Fiber Patch Cable 50/125, OM5, 15M (49 ft.), Lime
- MPN: N820-15M-OM5
- UPC: 037332224262
- PPN: TRP-N820-15M-OM5
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$140.48/ EA
Features
- Rated OM5 to offer a wideband 50/125 multimode fiber solution
- For 40/100 Gb speeds up to 300 meters (at 850 nm)
- Laser-optimized for use with cost-effective VCSEL light sources
- Lime green jacket for easy OM5 identification; 15 m (49 ft.) cable
- Backward compatible with OM3 and OM4 applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable
- Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution
- Experience Reliable Performance with Premium Construction
- Employ OM5 Cable for Backward Compatibility and Future Proofing
- Lifetime Warranty
Specifications
- Network Speed
- 10Gbps / 40Gbps / 100Gbps
- Operating Temperature Range
- -20 to 60°C (-4 to 140°F)
- Relative Humidity Range
- 4% to 98% RH
- Cable Outer Diameter
- 1.9 +/- 0.1 mm x 3.8 +/- 0.2 mm
- Clad Diameter
- 125 micron
- Optical Mode
- OM5
- Connector Type

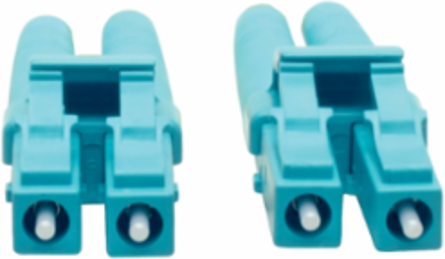

- LC Duplex Male
- Color
- Lime
- UPC Code
- 037332224262
- Warranty
- Lifetime limited warranty
Maximum Distance300 m (at 850 nm)
Storage Temperature Range-20 to 60°C (-4 to 140°F)
Cable Length15 m (49.2 ft)
Core Diameter50 micron
Number of Fibers2
TechnologyMultimode
Jacket MaterialLow-smoke zero-halogen (LSZH)
Push/Pull TabsNo
ComplianceIEEE 802.3ae, TIA LOMMF
