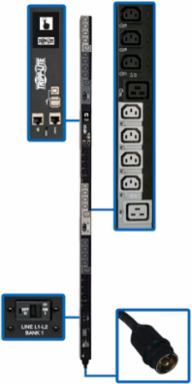

Tripp Lite PDU3EVS6L2130 10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA
Tripp Lite PDU3EVS6L2130 10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA
- MPN: PDU3EVS6L2130
- UPC: 037332206732
- PPN: TRP-PDU3EVS6L2130
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3109.18/ EA
Description
10kW 3-Phase PDU, Vertical, Switched, 0U, 24 IEC C13, 6 IEC C19 to L21-30P - 6 ft. Cord, LX Platform, TAA
Features
- 24 C13 and 6 C19 208/240V outlets distribute clean power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Remote power monitoring and control reduces on-site visits and maintenance costs

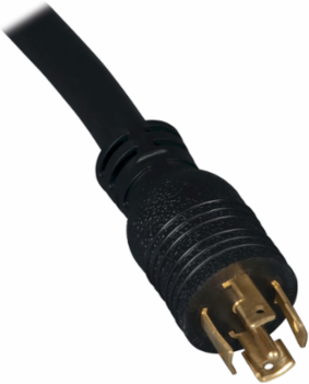

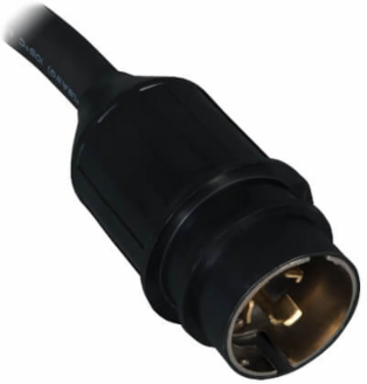

- 6 ft. cord with NEMA L21-30P 3-phase input connects to compatible AC source
- Color touchscreen LCD provides current levels, environmental data and network info
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- 3-Phase PDU Distributes, Monitors and Manages Network-Grade Power
- 30 Outlets Dispense AC Power to Connected Equipment
- Built-In LX Platform Network Management Card Allows Remote Access 24/7
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Color Touchscreen LCD Offers Important Data at a Glance
- Easy to Install Vertically in an EIA-Standard 19 in. Rack
- TAA-Compliant for GSA Schedule Purchases
- 2-Year Warranty
Specifications
Certifications
- Certifications
- Tested to UL60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011+A2: 2014 (Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

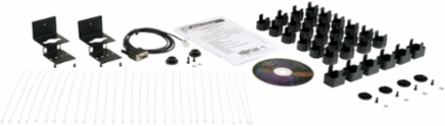

- Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
- PDU Form Factor
- Vertical (0U)
- Unit Dimensions (hwd / in.)
- 70 x 2.17 x 2.49
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)6.89 x 9.65 x 75.87
Unit Weight (lbs.)16.8
User Interface, Alerts & Controls
- Reported Load Segments
- Reports input current per phase (L1, L2, L3) and output current for each breakered load bank (13.9A balanced max per output load banks B1-B3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets (B1); L2-L3 feeds dark-gray outlets (B2); L3-L1 feeds light-gray outlets (B3)
- Front Panel LEDs
- One LED for each output receptacle offers power availability information: GREEN (Power ON), YELLOW (Warning condition reported), RED (Critical condition reported), RED FLASHING (Tripped breaker condition). Network Activity (Green): Flashes for network activity. Link/Network Speed (Yellow): On steady for any speed.
- Current Measurement Accuracy (Amps)
- +/-1%
- Power Measurement Accuracy (Watts)
- +/-1%
Front Panel LCD DisplayTouchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
SwitchesLX Platform Interface: Recessed reset switch for interface reboot and factory reset
Voltage Measurement Accuracy (Volts)+/-1%
Input
- PDU Input Voltage
- 208; 240
- Maximum Input Amps
- 24
- Input Phase
- 3-Phase
Recommended Electrical Service30A 208/240V
PDU Plug TypeNEMA L21-30P
Input Cord Length (ft.)6
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

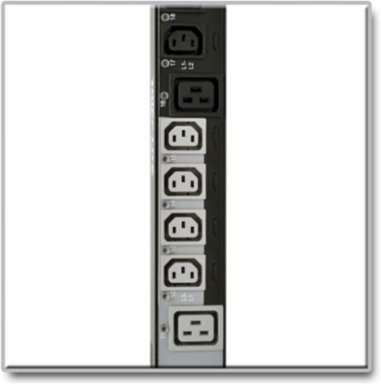

- (24) C13; (6) C19
- Overload Protection

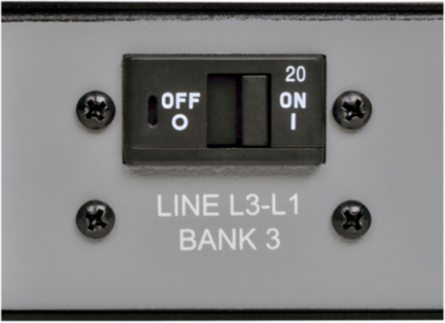

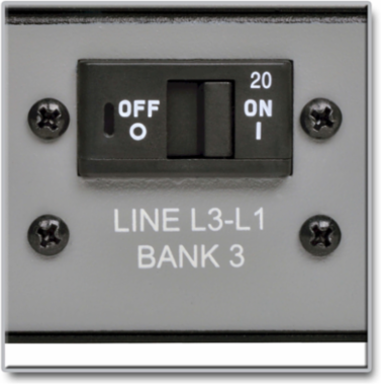

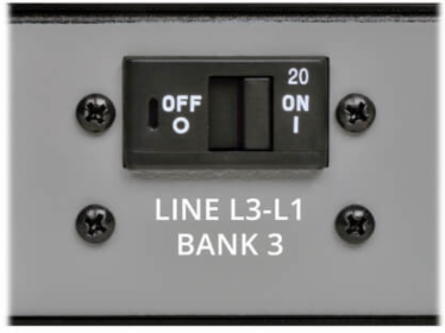

- 3 20A circuit breakers, 1 per outlet bank
Output Capacity Details10kW (240V), 8.6kW (208V) total capacity; 16A balanced maximum output per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage208; 240
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- PowerAlert Software
- LX Platform Interface: PowerAlert Device Manager15 (PADM15)
- Network Monitoring Port
- RJ45 Network port, RJ45 Config/Console Access port; 2x USB A ports supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules. USB B port (Configuration & Console Access)
- Network Speed
- 10/100 Mbps; 1Gbps
Communications CableUSB B-to-USB A Configuration/Console Access cable
SNMP CompatibilitySNMP V1, V2c, V3
Communications InterfacePre-installed network card; RS-232; USB
Environmental
- Operating Temperature Range
- 32 to 122F (0 to 50C)
- Relative Humidity
- 5 to 95% non-condensing
- Operating Elevation (m)
- 0 - 3000 m
Storage Temperature Range-30°C to +60°C (-22°F to +140°F)
Operating Elevation (ft.)0-10,000
Overview
- UPC Code
- 037332206732
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
