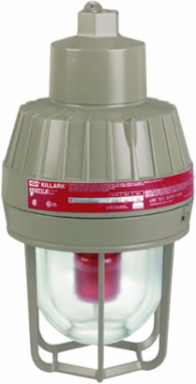

Killark ESXR1274A2G Red Xenon Strobe Pendant Light 12-74V, 3/4" Hub, Powder Epoxy Finish
Killark ESXR1274A2G Red Xenon Strobe Pendant Light 12-74V, 3/4" Hub, Powder Epoxy Finish
- MPN: ESXR1274A2G
- UPC: 783936106656
- PPN: HBL-ESXR1274A2G
- UNSPSC: 39111706
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
12-74V Red Strobe, 3/4" Pendant with Guard
Features
- Electronic component temperature range –40?C to +55?C
- NEC temperature code, T6 (<85°C)
- Flash rate–85 flashes per minute
- Xenon type lamp
- Voltage and amperage: 12-74 VDC: Draws 1.25A avg. @ 12 VDC tapering to 0.2A avg. @ 74 VDC, .75A avg. @ 24 VDC
- 120 VAC (50/60 HZ): Draws 0.30A avg.
- 240 VAC (50/60 HZ): Draws 0.17A avg.
- Power supply output: 13 watts standard 11 watts for 12-74 VDC
- The ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Mounting
- Pendant
- Voltage Rating
- 12-74 VDC
- Frequency Rating
- 50/60 Hz
- Mounting Type
- Pendant
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Optic TypeGlass Globe - Red
Special FeaturesThe ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Finish TypePowder Epoxy Paint
Lamp TypeFlashing
ARRA CompliantContact Manufacturer
Description - InvoiceSTROBE 12-74V 3/4" PENDGD
Harmonization Code8531809051
MSDS FlagNo
Light SourceXenon
SeriesESX Series
Carton - SCC-14 Next Lower Level Sub Pack00783936106656
Certifications
- EU RoHS Indicator
- Contact Manufacturer
