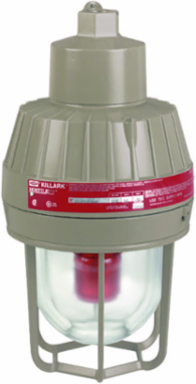

Killark ESXA120AA2G Class I 120V 3/4 Inch Xenon Pendant Strobe, Powder Epoxy Finish, 85 Flashes/Min
- MPN: ESXA120AA2G
- UPC: 783936106243
- PPN: HBL-ESXA120AA2G
- UNSPSC: 39111706
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Class I 120V 3/4" Pendant Strobe with Guard
Features
- Electronic component temperature range –40?C to +55?C
- NEC temperature code, T6 (<85°C)
- Flash rate–85 flashes per minute
- Xenon type lamp
- Voltage and amperage: 12-74 VDC: Draws 1.25A avg. @ 12 VDC tapering to 0.2A avg. @ 74 VDC, .75A avg. @ 24 VDC
- 120 VAC (50/60 HZ): Draws 0.30A avg.
- 240 VAC (50/60 HZ): Draws 0.17A avg.
- Power supply output: 13 watts standard 11 watts for 12-74 VDC
- The ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 3/4" |
| Mounting | Pendant |
| Voltage Rating | 120 VAC |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Pendant |
| Class Code | D20 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D20D201 |
| Light Source | Xenon |
| Series | ESX Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Total Units | 1 EA |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Optic Type | Glass Globe - Amber |
| Special Features | The ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. |
| Finish Type | Powder Epoxy Paint |
| Lamp Type | Flashing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CLI 120V 3/4"PEND STRB W/GRD |
| Harmonization Code | 8531809051 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936106243 |
| NAICS Code | 3351291100 |
