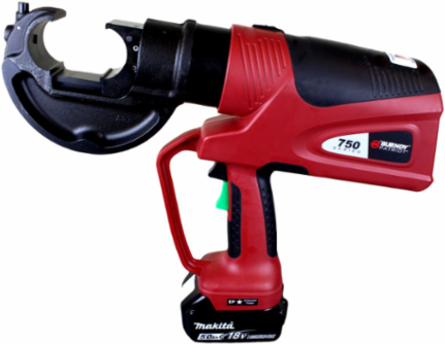

Hubbell PAT750L5 12-Ton C-Head Battery Crimper, 5Ah Li-Ion, 1.65 Inch Jaw Opening, Hard Case
Hubbell PAT750L5 12-Ton C-Head Battery Crimper, 5Ah Li-Ion, 1.65 Inch Jaw Opening, Hard Case
- MPN: PAT750L5
- UPC: 621945470996
- PPN: BUR-50067999
- UNSPSC: 27112750
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PAT750 12T C-Head Battery Crimper, 5Ah Li-ion, AC, Hard Case.
Features
- C-Head with 1.65" jaw opening
- 355° head rotation
- Uses U dies
- Ergonomic design and overmolded handle for comfort grip
- Patented T-Track alignment guide for HYGROUND® as well as other asymmetrical connectors
- Accepts 2.0Ah-6.0Ah Makita Lithium-ion Batteries
Specifications
Specifications
- Application - For Use On
- Tension Sleeves, Taps, Aerial Cable, Terminals & Splices, HYGROUND® Compression Grounding
- ChannelSightWidgetId
- 705
- Country of Origin
- US
- Description - Slang
- PAT750, 750, 12-Ton, U-die Crimper, BURNDY PATRIOT
- Dimensions
- 15.75 in x 3.5 in x 13.5 in
- Height
- 13.5 in
- Operating Voltage
- 18 VDC
- Product Type
- 12-Ton
- Application
- Crimping
- Size
- 15.75 in x 3.5 in x 13.5 in
- Type
- Crimper
- Weight
- 14.25 lb.
- Battery Type
- 5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
- ARRA Compliant
- No
- Class Code
- B82
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Order Multiple
- 1 EA
- Sub Class Code
- B82B82B
- Crimping Ranges
- Copper: #14 sol. - 750 kcmil; Aluminum: #8 sol. - 750 kcmil; ACSR: #4 AWG - 556.5 kcmil; Ground Rod: 1/2" - 1" diameter
- Tool Type
- Battery Actuated Crimper
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945470996
- Each - Pack Description
- Each
Buy American CompliantNo
Container TypeHard Case
Crimp Force Capacity12 ton
Die TypeU Die
Each - Width3.5 in
Length15.75 in
Power Source120V-AC Charger
Trade NamePATRIOT®
Battery5.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Sub BrandPATRIOT® CRIMPER
Warranty5 year limited warranty, Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
Width3.5 in
Jaw Width1.65 in
Certification AgencyProposition 65
Description - InvoicePATRIOT 12-Ton C-Head Crimper, 5Ah LI
Harmonization Code8467290090
MSDS FlagNo
Stock IndicatorS - Shelf Stock
Recharge Time0.75 hr
SeriesPATRIOT® Series
Base Unit of MeasureEA
Each - Number of Sub Packs1
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Under Review
