Dragon Tooth 13671B Die
- MPN: 13671B
- UPC: 078621081654
- PPN: T-B-13671B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

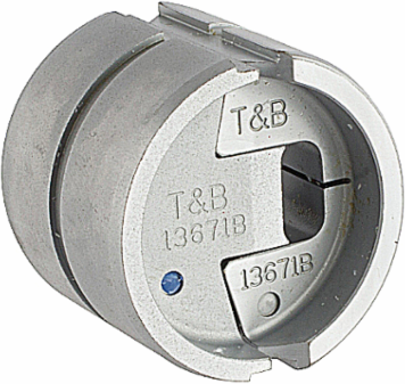

Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 204 Series Dragon Tooth Terminals
Features
- Application Tools: 13100A, TBM15I
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 27112820 Lug crimping tool dies |
|---|---|
| Brand Name | Dragon Tooth |
| Application | Crimping Dragon Tooth terminal for magnet wire |
| Color | Silver |
| IGCC | 2427 Lug crimping tool dies |
|---|---|
| Type | Die |
| Material | Alloy Steel |
European Specifications (ETIM)
| ETIM | EC001282 Insert for crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| Cross section | 10,380 - 52,480mm² |
| Compression shape | Trapezoid compression |
| Application | Insulated varnish wire-cable lugs and connectors |
|---|---|
| AWG-range | 12 - 4 |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 0.6 lbs. Each |
| Outer Dimensions (inches) | 5x5x1.25 |
|---|
