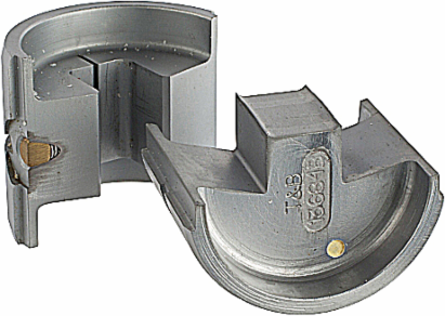

Dragon Tooth 13684B Die

MPN: 13684B
PPN: T-B-13684B

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3770.83/ EA

Qty:

Loading add to cart quantity...

Description

Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 22L009 Dragon Tooth Terminals

Features

Application Tools: 13100A, TBM15I

Specifications

European Specifications (ETIM)

ETIM: EC001282 Insert for crimp tool cable lugs, cable end sleeves, screen connection

Cross section: 36,120 - 86,000mm²

Compression shape: Trapezoid compression

ApplicationInsulated varnish wire-cable lugs and connectors

AWG-range16 - 5

Packaging

Outer Quantity: 1

Weight Uom: 80 lbs. per 100

Outer Dimensions (inches)4x4x3

North American Specifications (UNSPSC)

UNSPSC: 27112820 Lug crimping tool dies

Brand Name: Dragon Tooth

Application: Crimping Dragon Tooth terminal for magnet wire.

Color: Silver

IGCC2427 Lug crimping tool dies

TypeDie

MaterialAlloy Steel

Downloads
