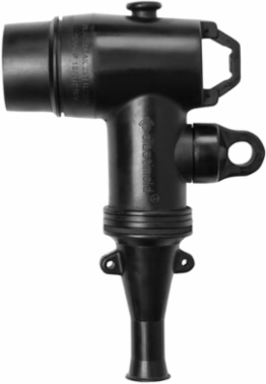

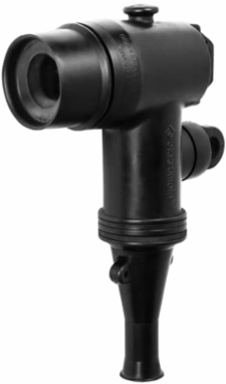

Thomas & Betts 252LR-B5240 15/25KV 200A DB ELBOW w/tp B5240

MPN: 252LR-B5240
UPC: 075114334921
PPN: T-B-252LR-B5240
UNSPSC: 39121421

$247.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .635-.905 inch. Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.

Specifications

Additional Information

Application	15/25kV, 200 Amp Deadbreak Connection.
Color	Black
Effective Date	20170328
Includes	Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	25KV DB ELBOW N-SEALING KIT
Size	Cable Insulation Diameter - .635-.905 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
