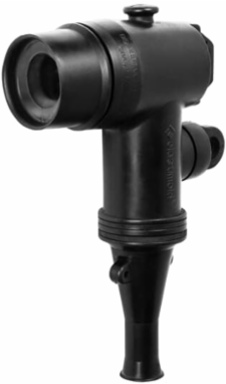

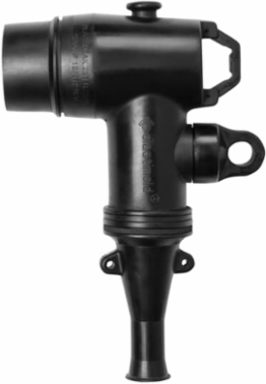

Thomas & Betts 252LR-C5240 15/25KV 200A DB ELBOW W/TP C5240
- MPN: 252LR-C5240
- UPC: 075114334938
- PPN: T-B-252LR-C5240
- UNSPSC: 39121421
CAD
$248.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, Cable Insulation Diameter - .805-1.060 inch Bi-Metal Lug, Conductor Size 240 - 1/0 Stranded/Compressed or 2/0 Compact/Solid. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 15/25kV, 200 Amp Deadbreak Connection.
- Color
- Black
- Effective Date
- 20170328
- Includes
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product Name25KV DB ELBOW N-SEALING KIT
SizeCable Insulation Diameter - .805-1.060 inch
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
