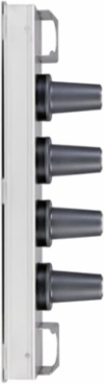

Thomas & Betts K650-J4-5 15/25KV 600A DB 4 PT JUNCTION OPT-5
- MPN: K650-J4-5
- UPC: 783786657971
- PPN: T-B-K650-J4-5
- UNSPSC: 26121630
CAD
$1921.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Series Deadbreak 4-Point Junction, Rubber Junction, Stainless Steel U-Straps and Back Plate.
Specifications
Additional Information
- Application
- Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
- Connection Type
- Push-In
- Material
- EPDM Rubber and Stainless Steel Bracket
- Product Type
- 4-Point Rubber Junction
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold 600 Amp Series Elbow connectors. U-Style Mounting Straps Only.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Effective Date19980108
Product NameELECTRICAL CONNECTOR,>1000V"
Size5.87 inches (149. mm) Tall, 6.75 inch (171.5 mm) Wide, 19.00 inch (483.0 mm) Long, 4.00 inch (102 mm) Center Junction to Center Junction. 5.50 inch (139.7 mm) Center Slot to Center Slot on Short Side, 10.00 inch (254.0 mm) on Long Side, and 1.50 inch (38.1 mm) Center Slot from Edge on Long Side.
StandardsANSI/IEEE Standard 386.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
