Thomas & Betts 274J4 25KV 200A LB JUNCTION 4PT SST BRCKT
- MPN: 274J4
- UPC: 783786625116
- PPN: T-B-274J4
- UNSPSC: 26121630
CAD
$1608.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

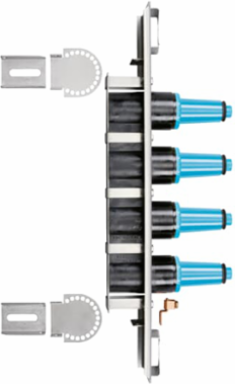

25kV 200 Amp, Loadbreak 4-Point Junction with Stainless Steel Bracket
Specifications
Additional Information
- Application
- Designed for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass. Suitable for use on 25-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation.
- Effective Date
- 19980115
- Product Name
- ELECTRICAL CONNECTOR >1000V
- Size
- 27.00 inch (685.8 mm) Mounting Frame Length, 4.00 inch (101.6 mm) Center to Center, 3.60 inch (91.4 mm) wide. 9.60 inch (243.8 mm) height
- Standards
- ANSI/IEEE 386
Brand / LabelElastimold
MaterialEPDM Rubber with Stainless Steel Bracket
Product Type4-Point Junction
Special Functions25kV, 200 Amp Loadbreak 4-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting hardware for flat or curved mounting positions.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
