Thomas & Betts K655LR-LM0360-SG3 15/25KV 600A DB ELBO ASSY LM0360SG3

MPN: K655LR-LM0360-SG3
UPC: 075114111836
PPN: T-B-K655LR-LM0360-SG3
UNSPSC: 39121421

$958.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

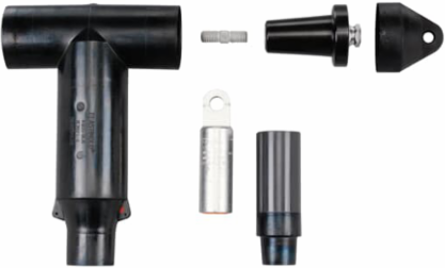

600 Amp, 15/25kV, 600 Series Deadbreak, Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Aluminum Compression Lug. Cable Insulation Diameter 1.280 inch to 1.430 inch. Conductor Size kcmil Compressed/Stranded 650 or Compact/Solid 750 or mm2 Compact 400. Cold Shrinkable Seal with Copper Braid and Constant Force Spring Included.

Specifications

Additional Information

Application	Designed to provide fully shielded, dead-front submersible cable connections to high-voltage apparatus.
Color	Black
Effective Date	20130726
Includes	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
