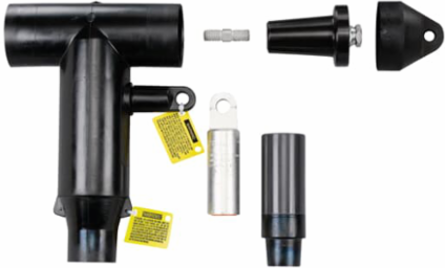

Thomas & Betts K655DLR-H0270-SG3 15/25KV 600A DB ELBO DTEST H0270SG3

MPN: K655DLR-H0270-SG3
UPC: 075114334532
PPN: T-B-K655DLR-H0270-SG3
UNSPSC: 39121421

$1153.73

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kv, 600 Amps, Deadbreak Direct Test Elbow without Test Point. With Cold-Shrinkable Jacket with Copper Braid and Constant Force Spring. Universal Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size AWG or kcmil, Compressed Stranded 4/0 Compacted, Solid 250.

Specifications

Additional Information

Application	15/25kV, 600 Amps
Color	Black
Effective Date	20170324
Includes	1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Direct Test Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	25KV 600A DB ELBOW W-SEALING KIT
Size	Cable Insulation Diameter 0.850 inch to 1.050 inch.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
