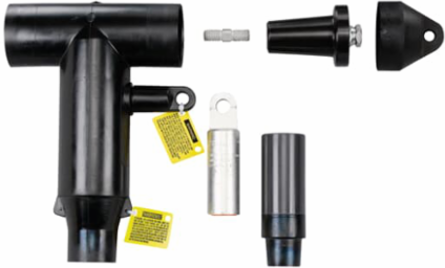

Thomas & Betts K655DLR-G0270 15/25KV 600A DB ELBOW D-TEST G0270
- MPN: K655DLR-G0270
- UPC: 075114238830
- PPN: T-B-K655DLR-G0270
- UNSPSC: 39121421
CAD
$1064.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, Elbow with Direct Test and Sealing Kit. Cable Insulation Diameter - .760-.950 inch, Aluminum Lug, Conductor Size 270 - 4/0 Stranded/Compressed or 250 Compact/Solid.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amps
- Color
- Black
- Current Rating
- 600 A
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Direct Test Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20150418
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeWidth 10.36 inch x Length 13.00 inch from Center of Bushing Insert to T-Body Bottom.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
