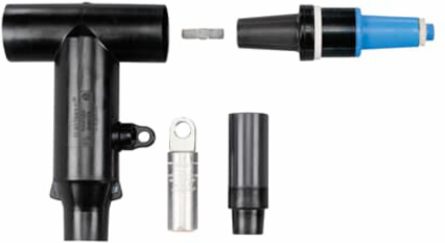

Thomas & Betts K656ETP-H5260-S-TL WINDOW-OP ELBOW,600A DB,25KV W/SHIE
- MPN: K656ETP-H5260-S-TL
- UPC: 783786796427
- PPN: T-B-K656ETP-H5260-S-TL
- UNSPSC: 39121421
CAD
$1698.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 25kV, Deadbreak Elbow, Window Op Connector Kit with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 3/0 /Compacted Solid 4/0 /mmSquared Compact 95. Cold-Shrinkable Jacket Seal Included. With Sheild Adapter.
Specifications
Additional Information
| Application | 600 Amps, 25kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Cable Insulation Diameter 0.850 inch to 1.050 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 25 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20090105 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Capacitive Test Point, Cold-Shrinkable Jacket Seal and Shield Adapter. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
