Thomas & Betts K655DLR-J0330 15/25KV 600A DB ELBOW D-TEST J0330

MPN: K655DLR-J0330
UPC: 075114238854
PPN: T-B-K655DLR-J0330
UNSPSC: 39121421

$1071.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 600 Amp, Direct Test Elbow, DeadBreak, Cable Insulation .980-1.180 inches, Aluminum Compression Lug, Conductor Size 500 Stranded/Compressed or 600 Solid/Compact

Specifications

Additional Information

Application	15/25kV, 600 Amps
Color	Black
Current Rating	600 A

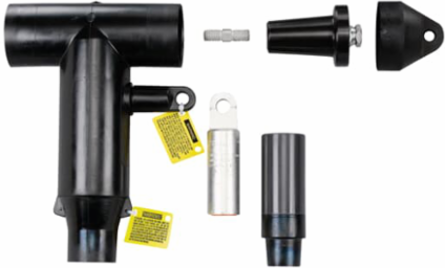

Includes	1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
Material	Housing - EPDM Rubber
Product Type	Deadbreak Direct Test Elbow Connector
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20150418
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inch x Length 13.00 inch from Center of Bushing Insert to T-Body Bottom.
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV
