Thomas & Betts K656LR-G0260 15/25KV 600A DB ELBOW TP G0260
- MPN: K656LR-G0260
- UPC: 075114400497
- PPN: T-B-K656LR-G0260
- UNSPSC: 39121421
CAD
$900.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

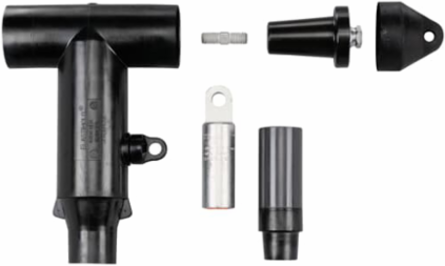

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Cable Insulation .760 to .950 inch. Aluminum Lug, Conductor Size 3/0 Stranded/Compressed or 4/0 Compact/Solid. No Sealing Kit.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amp Deadbreak Elbow Connection
- Color
- Black
- Effective Date
- 20190508
- Includes
- Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsFully Submersible
Insulation MaterialYes EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
