Thomas & Betts K656LR-G5240 15/25KV 600A DB ELBOW TP G5240

MPN: K656LR-G5240
UPC: 075114314565
PPN: T-B-K656LR-G5240
UNSPSC: 39121421

$1459.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

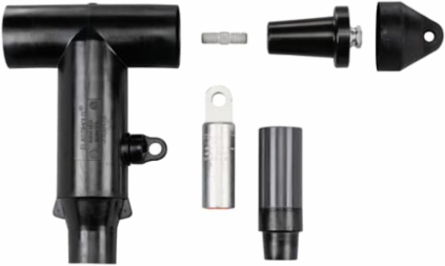

25 kV, 600 Amp, Deadbreak, Elbow Kit, with Test Point, Insulated Plug, Cap, Stud, Bi-Metal Lug, and Cable Adapter. Cable Insulation Diameter .760-.950. Conductor Size 1/0 Stranded/Compressed or 2/0 Compact/Solid

Specifications

Additional Information

Application	15/25kV, 600 Amp Deadbreak Elbow Connection
Color	Black
Effective Date	20160802
Includes	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	25 kV
