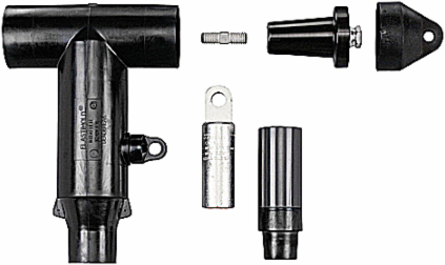

Thomas & Betts K656LR-H0320-SG3 Deadbreak Elbow Connector with Test Point
- MPN: K656LR-H0320-SG3
- UPC: 075114277112
- PPN: T-B-K656LR-H0320-SG3
CAD
$976.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 0.850 inch to 1.050 inch. Conductor Size Compressed/Stranded 450 or Compact/Solid 500. Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Per0xide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. Cold-Shrinlable Seal with Copper Braid and Constant Force Spring
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size Compressed/Stranded 450 or Compact/Solid 500
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector with Test Point
Application15/25kV, 600 Amp Deadbreak Elbow Connection
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 7.05 lbs. Each
Outer Dimensions (inches)13.25x10.5x4.38
