Thomas & Betts K656LR-J5270-SG3 Deadbreak Elbow Connector with Test Point

MPN: K656LR-J5270-SG3
UPC: 075114276894
PPN: T-B-K656LR-J5270-SG3

$1180.93

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Bi-Metal Compression Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size Compressed/Stranded 4/0 or Compact/Solid 250. Cold Shrinkable Seal with Copper Braid and Constant Force Spring.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Per0xide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. Cold-Shrinlable Seal with Copper Braid and Constant Force Spring
Standard	ANSI/IEEE Standard 386
Conductor Range	Conductor Size AWG Compressed/Stranded 4/0 or Solid/Compact 250 or mm2 125.
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

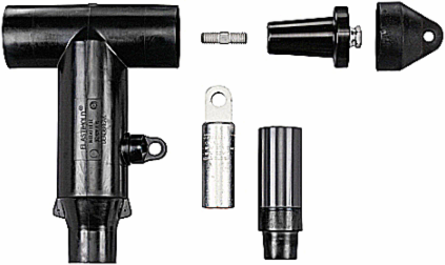

Consist Of	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.

IGCC	4586 Electrical connector assembly
Type	Deadbreak Elbow Connector with Test Point
Application	15/25kV, 600 Amp Deadbreak Elbow Connection
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Material	Housing - EPDM Rubber
Voltage Rating	25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
