Thomas & Betts K656LR-JAC02 15/25KV 600A DB ELBOW TP JAC02
- MPN: K656LR-JAC02
- UPC: 075114396868
- PPN: T-B-K656LR-JAC02
- UNSPSC: 39121421
CAD
$947.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

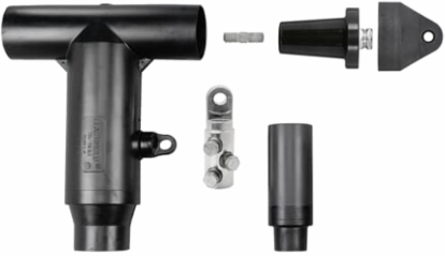

15/25kV, 600 Amps, Separable Cable joint Elbow with Test Point, Includes Elbow Connector Housing, Insulated Plug with Cap, Stud, Shear Bolt Lug, Cable Adapter and Lubricant. Cable Insulation Range 0.98 to 1.18 inch. Shear Bolt Lug AC02 Range 4/0 to 500 kcmil Stranded - Compressed - Solid - Compact.
Specifications
Additional
| Voltage | 15 to 25 kV |
|---|---|
| Current Rating | 600 A |
| Size | Width 10.36 in, Length 13.00 in (body to center of bushing) |
| Shear Bolt Lug Range | 4/0 to 500 kcmil |
| Material | Housing - EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| Product Type | Deadbreak Elbow Connector with Test Point |
| Country of Origin | United States (US) |
| Amperage | 600 A |
|---|---|
| Temperature Range | -40 to +65 C |
| Cable Insulation Range | 0.98 to 1.18 in |
| Connection Type | Shear Bolt |
| Insulation Material | EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
| Brand | Elastimold |
