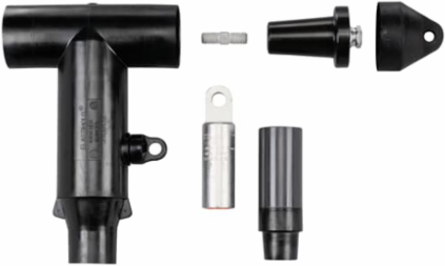

Thomas & Betts K656LR-K0380 15/25KV 600A DB ELBOW TP K0380

MPN: K656LR-K0380
UPC: 075114402491
PPN: T-B-K656LR-K0380
UNSPSC: 39121421

$1112.93

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15/25kV, 600 Amp, DeadBreak, Elbow with Test Point (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation 1.090-1.310 inches, Aluminum Compression Lug, Conductor Size 750 Stranded/Compressed

Specifications

Additional Information

Application	15/25kV, 600 Amp Deadbreak Elbow Connection
Color	Black
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes EPDM Rubber
Product Main Type	ELASTIMOLD 600A SEPARABLE CONNECTORS
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20190718
Includes	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	25 kV
