Thomas & Betts K656LR-L0380 15/25KV 600A DB ELBOW TP L0380

MPN: K656LR-L0380
UPC: 783786585595
PPN: T-B-K656LR-L0380
UNSPSC: 39121421

$890.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

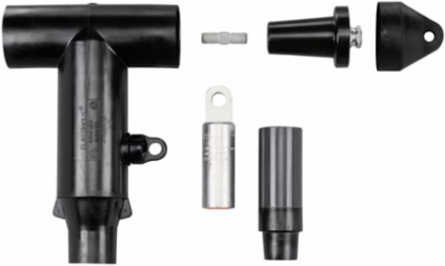

15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Aluminum Compression Lug. Cable Insulation Diameter 1.180 inch to 1.465 inch. Conductor Size Compressed/Stranded 700/750 or Compact/Solid 900.

Specifications

Additional Information

Application	15/25kV, 600 Amp Deadbreak Elbow Connection
Color	Black
Effective Date	20080208
Includes	Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	600 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
Standards	ANSI/IEEE Standard 386
Voltage Rating	25 kV
