Thomas & Betts K656LR-M0410-SG2 Deadbreak Elbow Connector with Test Point
- MPN: K656LR-M0410-SG2
- UPC: 075114339308
- PPN: T-B-K656LR-M0410-SG2
CAD
$1047.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kv, 600 Amp, Deadbreak Elbow with Test Point and Sealing Kit. Cable Insulation Diameter 1.370-1.630 inch (34.798-41.402mm). Universal Aluminum Compression Lug. 410 Wire Size - 1000 kcmil Stranded/Compressed. Sealing Kit SG2 - Cold-Shrinkable Seal with Copper Rod and Constant Force Spring.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)13.25x10.5x4.38
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Per0xide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point. SG2 Seal.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size - 1000 kcmil Stranded/Compressed
- Color
- Black
- Amperage Rating
- 600 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of

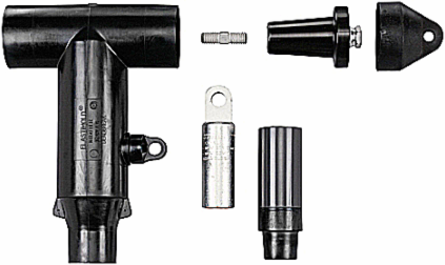

- Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
IGCC4586 Electrical connector assembly
TypeDeadbreak Elbow Connector with Test Point
Application15/25kV, 600 Amp Deadbreak Elbow Connection
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
