Thomas & Betts K465LR-G0240 15/25KV 630A DB ELBOW ASSY G0240
- MPN: K465LR-G0240
- UPC: 075114391061
- PPN: T-B-K465LR-G0240
- UNSPSC: 39121421
CAD
$960.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

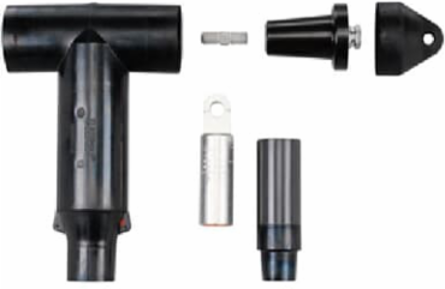

15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.760-0.950 inches (19.304-24.130mm). Aluminum Compression Lug, Conductor Size 1/0 Stranded/Compressed or 2/0 Solid/Compact. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
Specifications
Additional
| Voltage Rating | 15 to 25 kV |
|---|---|
| Temperature Range | -40 to +65 0C |
| Connection Type | Compression |
| Cable Insulation Diameter | 0.760-0.950 in |
| Standards | ANSI/IEEE Standard 386 / IEC |
| Color | Black |
| Current Rating | 630 A |
|---|---|
| Size | Width 10.36 in, Length 13.00 in to center of O-Ring |
| Conductor Size | 1/0 Stranded/Compressed, 2/0 Solid/Compact |
| Material | Housing - EPDM Rubber |
| Country of Origin | United States (US) |
| Brand | Elastimold |
