Thomas & Betts K465LR-J-2270 15/25KV 630A DB ELBOW ASSY J2270
- MPN: K465LR-J-2270
- UPC: 783786325559
- PPN: T-B-K465LR-J-2270
- UNSPSC: 39121421
CAD
$1058.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

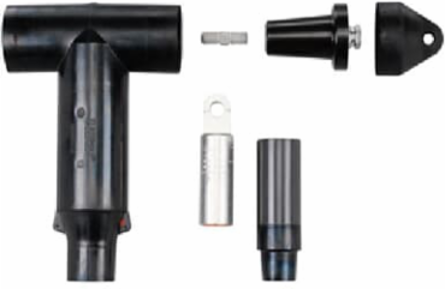

15/25kV, 630 Amps, Deadbreak Elbow without Test Point. Cable Insulation Diameter 0.980 inch to 1.180 inch (24.892-29.972mm). Copper Compression Lug, Conductor Size 4/0 Stranded/Compressed or 250 Solid/Compact or 125 mm2. Includes Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Tube Lubricant, Cable Adapter, Installation Instructions and Crimp Chart. Exceeds ANSI/IEEE Standard 386 Latest Revision.
Specifications
Additional Information
- Application
- Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
- Color
- Black
- Current Rating
- 630 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELBOW 400A DB 15/25KV > 1000 VOLTS
- Size
- Width 10.36 inch. Length 13.00 inch from Bottom Edge to Center of Installation O-Ring.
- Standards
- ANSI/IEEE Standard 386/ IEC
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20020418
Includes(1) Elbow Housing, (1) Compression Lug, (1) Stud, (1) Insulated Plug with Cap, (3) Tubes Lubricant, (1) Cable Adapter, Installation Instructions, Crimp Chart.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector
Special FunctionsFully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
