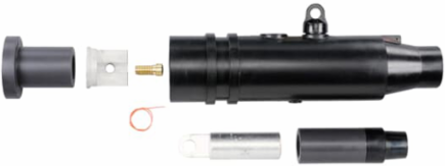

Thomas & Betts K656SR-J2270 15/25KV 600A DB TP STR RECEPT J2270
- MPN: K656SR-J2270
- UPC: 783786513406
- PPN: T-B-K656SR-J2270
- UNSPSC: 39121421
CAD
$1611.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25kV, 600 Series Straight Receptacle with cable adapter, lug and retaining ring. Cable Insulation Diameter 0.980 inch to 1.180 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 4/0 or Compacted Solid 250 kcmil or mmSquared Compact 125.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Additional Information
- Application
- 15/25kV, 600 Amps
- Color
- Black
- Current Rating
- 600 A
- Includes
- 1 Straight Receptacle Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Straight Receptacle adapter, 1 Cable adapter, 1 Adapter Retaining Ring, 1 Hardware Prepack, Crimp Chart, Installation Instruction Sheets
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Straight Receptacle with Test Point
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20070108
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeDiameter 4.19 inch x Length 16.98 inch
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
