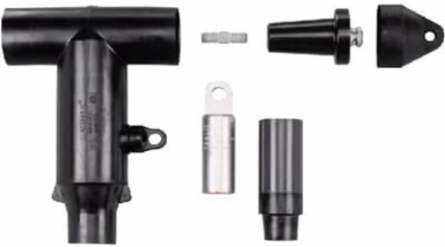

Thomas & Betts K676LR-N2400 15/25KV 900A DB ELBOW TP ASSY N2400
- MPN: K676LR-N2400
- UPC: 783786421244
- PPN: T-B-K676LR-N2400
- UNSPSC: 39121421
CAD
$1160.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
900 Amp, Elbow Connector, with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter, 15/25KV, Cable Insulation Diameter 1.515 inch to 1.780 inch. Copper Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 900 /Compacted Solid 1000 /mmSquared Compact 500.
Specifications
Additional Information
- Application
- Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
- Color
- Black
- Current Rating
- 900 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- Width 10.36 inches, Length 13.00 inches from Bottom Edge to Center of Installation O-Ring
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20040203
Includes(1) Elbow Housing, (1) Compression Lug, (1) Stud, (1) Insulated Plug with Cap, (1) Cable Adapter, VD Cap-Peroxide, Lubricant, Installation Instructions, Crimp Chart.
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Elbow Connector with Test Point
Special FunctionsFully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
