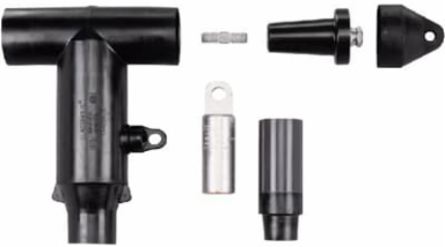

Thomas & Betts K676LR-M2400 15/25KV 900A DB ELBOW TP ASSY M2400

MPN: K676LR-M2400
UPC: 783786466634
PPN: T-B-K676LR-M2400
UNSPSC: 39121421

$1161.67

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

900 Amp, 15/25kV, 600 Series Elbow with Test Point, with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.370 inch to 1.630 inch. Copper Compression Lug. Conductor Size Compressed Stranded 900 kcmil or Compacted Solid 1000 kcmil.

Specifications

Additional Information

Application	Designed to provide Fully Shielded, Dead-Front Submersible Cable Connections to High-Voltage Apparatus.
Color	Black
Current Rating	900 A
Environmental Conditions	All Weatheronditions °C
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Width 10.36 inches, Length 13.00 inches from Bottom Edge to Center of Installation O-Ring
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 to 25 kV

Brand / Label	Elastimold
Connection Type	Compression
Effective Date	20050627
Includes	(1) Elbow Housing, (1) Compression Lug, (1) Stud, (1) Insulated Plug with Cap, (1) Cable Adapter, VD Cap-Peroxide, Lubricant, Installation Instructions, Crimp Chart.
Material	Housing - EPDM Rubber
Product Type	Deadbreak Elbow Connector with Test Point
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and Equipment in a de-energized State. Non-Corrosive Capacitive Test Point.
Temperature Range	-40 to +65 °C
