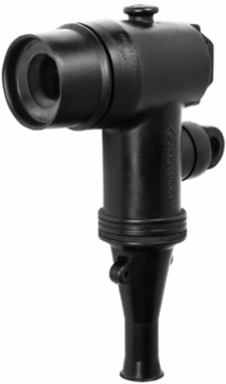

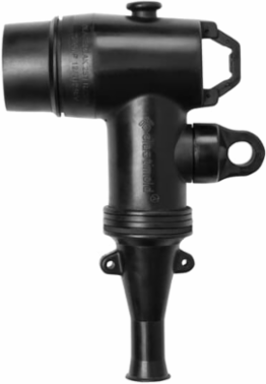

Thomas & Betts 252LR-C5220 15/25KV DB ELBOW N-SEALING KIT
- MPN: 252LR-C5220
- UPC: 075114321419
- PPN: T-B-252LR-C5220
- UNSPSC: 39121421
CAD
$249.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25 kV, 200 Amp, Deadbreak, Elbow Connector with Test Point, No Sealing Kit, Cable Insulation Diameter - .805-1.060 inch, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Solid/Compact. Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Specifications
Additional Information
- Application
- 15/25kV, 200 Amp Deadbreak Connection.
- Color
- Black
- Effective Date
- 20161216
- Includes
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Equipped with an Internal Voltage Test Point. Has Provisions for De-Energized Operation using Standard Hotstick Tools.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR
SizeCable Insulation Diameter - .805-1.060 inch
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
