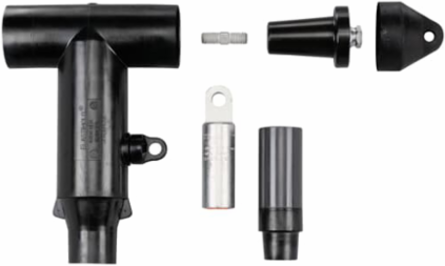

Thomas & Betts K656LR-N0280 25KV 600A ELBOW DB NO SEALING KIT
- MPN: K656LR-N0280
- UPC: 075114304313
- PPN: T-B-K656LR-N0280
- UNSPSC: 39121421
CAD
$878.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, DeadBreak, Elbow with Test Point (includes Insulated Plug, Cap, Stud, Lug and Cable Adapter). Cable Insulation 1.515-1.780 inches, Aluminum Compression Lug, Conductor Size 250 Stranded/Compressed
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 15/25kV, 600 Amp Deadbreak Elbow Connection
- Color
- Black
- Effective Date
- 20160510
- Includes
- Elbow Connector Housing, Compression Lug, Stud, Insulated Plug with Cap, Lubricant, Cable Adapter, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Can be Easily Connected or Disconnected using Standard Hand Tools and Equipment in a De-Energized State. Non-Corrosive, Capacitive Test Point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating600 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeWidth 10.36 inch, Length 13.00 inch from Body of T-Body to Center of Bushing.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
