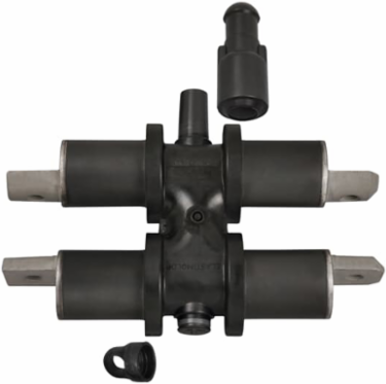

Thomas & Betts K656CHSL-H0270 15-25KV SPIKING AID 600A CONNECTOR
- MPN: K656CHSL-H0270
- UPC: 075114183932
- PPN: T-B-K656CHSL-H0270
- UNSPSC: 39121421
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, Deadbreak, Compact H Spiking Aid Joint with Test Point, Cable Insulation Diameter 0.850 inch to 1.050 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
Specifications
Additional Information
- Application
- Used to Join Cables in a Disconnectable 4-Way Joint, Suitable for Small Vaults and Manholes Due to its Compact Size
- Color
- Black
- Current Rating
- 600 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Special Functions
- Includes Integral Capacitive Test Point
- Voltage Rating
- 15 to 28 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20140711
Includes4-Way Bus Bar, Lubricant, Installation Instructions, Straight Receptacle, Bolts and Washers, Cable Adapter, Retaining Ring and Lug
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Compact H Joint with Spiking Aid, Cable Adapter, Retaining Ring and Lug
StandardsANSI/IEEE Standard 386
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
