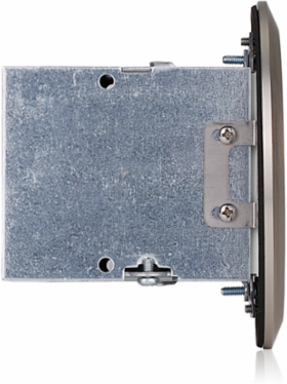

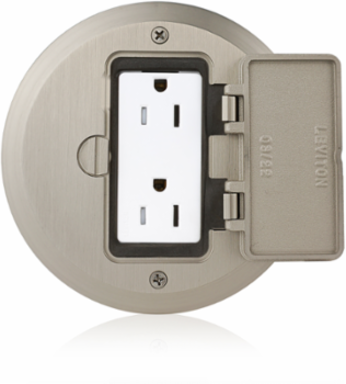

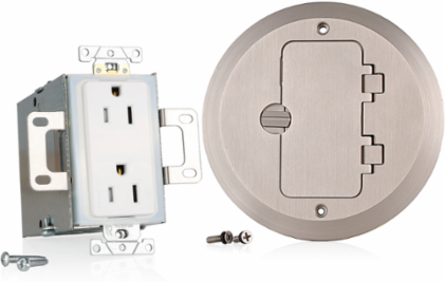

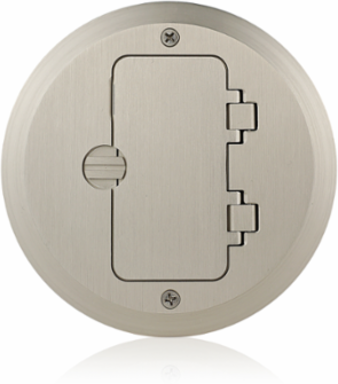

Leviton 25251-TDN 15 Amp 1-Gang Floor Box Assembly, Commercial Grade, Tamper-Resistant, Self-Grounding
- MPN: 25251-TDN
- UPC: 078477002575
- PPN: LEV-25251-TDN
CAD
$165.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang Floor Box Receptacle Assembly, 15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Tamper-Resistant Decora Receptacle, Straight Blade, Commercial Grade, Self Grounding, Steel Strap, Round Cover with Nickel-Plated Brass, Ivory Receptacle
Features
- For use in wood frame construction
- Ideal for conference rooms, auditoriums, stages, homes, hospitality, and more
- Meet or exceed UL514A requirements including the Scrub Water Test and comply with Section 4.3.8 of the Americans with Disabilities Act specifying accessible design
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | cCSAus, NOM |
| Applicable Standards | UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04 |
|---|---|
| NEMA | WD-1 & WD-6 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Color | Ivory |
| Floorplate Material | Solid Brass 0.060 In Thick |
| Grounding Screw | Brass 8-32 |
| Shutter Mechanism | Delrin® Acetal |
| Terminal Screws | Brass 8-32 |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Face Material | Nylon |
| Ground Clips | Brass-Plated |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Strap Material | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Back & Side |
Product Features
| Type | Wood Frame |
|---|
Warranty
| Warranty | 2-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1/2 HP |
|---|
