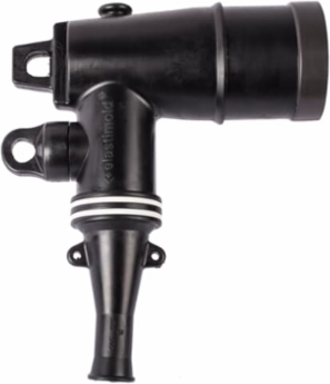

Thomas & Betts 162LR-D 15 LB ELBOW HOUSING ONLY .890-1.22
- MPN: 162LR-D
- UPC: 075114188098
- PPN: T-B-162LR-D
CAD
$202.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point (Housing Only), .890 inch - 1.220 Inch Cable Insulation Diameter. Housing with Elbow Probe, no Lug.
Specifications
Additional Information
- Application
- 15kV, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Connector Housing
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 7.76 inch (197.1 mm) X 9.03 inch (229.4 mm), 2.92 inch (74.2 mm) Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114188098
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector with Test Point
Special Functions15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Voltage Rating15 kV
Dimensions
- Product Net Weight
- 1.99 lb902.494 g
Container Information
- Package Level 2 Units
- 1 piece
- Package Level 2 Height
- 12.5 in318 mm
Package Level 2 Width19.12 in486 mm
Package Level 2 Depth / Length10.5 in267 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114188098
Customs Tariff Number8535908020
