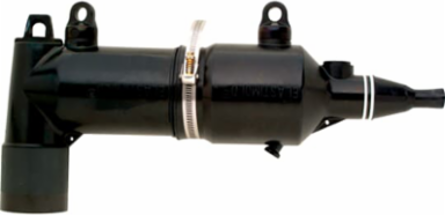

Thomas & Betts 274AFLR1-D0220 ELBOW HOUSING FOR 15.5KV L-N CLFUSE
- MPN: 274AFLR1-D0220
- UPC: 783786479788
- PPN: T-B-274AFLR1-D0220
- UNSPSC: 39121421
CAD
$2707.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 15.5kV, Fuse Test Port - Two Direct Test Ports, Small Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid/Compact.
Specifications
Additional Information
| Application | 15.5kV, 6-20 Amps |
|---|---|
| Color | Black |
| Effective Date | 20051212 |
| Material | Housing EPDM Rubber ; Lug Aluminum |
| Product Type | Molded Fuse Housing |
| Special Functions | Two Direct Test Ports, Small Housing |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Approximately 9-1/4 inch wide x 17 inches long |
| Standards | IEEE 386 Standard |
| Voltage Rating | 15.5 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
