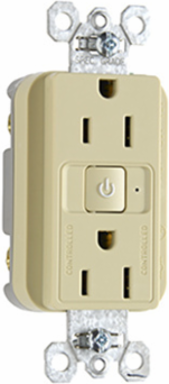

Pass & Seymour RF26252CHI 15A 125V Ivory Plug Load RF Half-Control Receptacle, 1.73 Inch Width
Pass & Seymour RF26252CHI 15A 125V Ivory Plug Load RF Half-Control Receptacle, 1.73 Inch Width
- MPN: RF26252CHI
- UPC: 785007039863
- PPN: P-S-RF26252CHI
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$135.39/ EA
Description
15A 125V Ivory Plug Load RF Half-Control Receptacle, 1.73 Inch Width
Features
- Receptacle compliant with 2023 NEC, CA Title 24, and ASHRAE 90.1
- Product meets requirements of UL498B: Receptacles with integral switching means
- Binding button on face also serves as a manual override
- Simple, three-step binding process for wireless communication with RF Signal Pack.
- Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly
- Feed-thru capability allows for downstream control of multiple receptacles
- .032 inch think, brass, triple-wipe power contacts for lasting retention.
- LED Indicator Light on the receptacle guides binding process and indicates power to the receptacle.
- Permanently molded face offers clear identification of controlled receptacle for end users.
- Auto-ground eliminates the necessity to terminate grounding conductor in device
Specifications
Specifications
- Depth
- 1.25 in
- Height
- 2.68 in
- Product Line
- Pass & Seymour
- Country of Origin
- China
- Standard
- FEDSPEC
- Number of Wires
- 4.0
- Wire Size
- 14 - 10 AWG
- Features
- Half-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
ColorIvory
Width1.73 in
Amperage15.0 A
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
