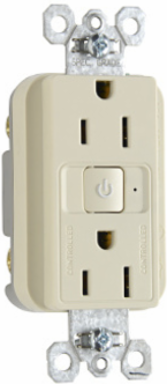

Pass & Seymour RF26252CHLA 15A 125V Light Almond Plug Load RF Half-Control Receptacle, 1.73 Inch Width

MPN: RF26252CHLA
UPC: 785007040005
PPN: P-S-RF26252CHLA

$142.16

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15A 125V Light Almond Plug Load RF Half-Control Receptacle, 1.73 Inch Width

Features

Receptacle compliant with 2023 NEC, CA Title 24, and ASHRAE 90.1
Product meets requirements of UL498B: Receptacles with integral switching means
Binding button on face also serves as a manual override
Simple, three-step binding process for wireless communication with RF Signal Pack.
Corrosion-resistant, plated steel strap locked into face and back body to resist pulling away from face/body assembly
Feed-thru capability allows for downstream control of multiple receptacles
.032 inch think, brass, triple-wipe power contacts for lasting retention.
LED Indicator Light on the receptacle guides binding process and indicates power to the receptacle.
Permanently molded face offers clear identification of controlled receptacle for end users.
Auto-ground eliminates the necessity to terminate grounding conductor in device

Documentation & Downloads

Specifications

Key Specifications

Depth	1.25 in
Height	2.68 in
Width	1.73 in
Amperage	15.0 A
Standard	FEDSPEC
Number of Wires	4.0
Wire Size	14 - 10 AWG
Features	Half-Controlled
Outlet Type	Straight Blade
Application Sector	Commercial
Connection Location	Back and Side
Warranty Type	1-Year Limited Warranty

Color	Light Almond
Product Line	Pass & Seymour
Country of Origin	China
Voltage	125.0 V
Features	Plugload
Indoor/Outdoor	Indoor
Wall Plate Included	No
Number of Receptacles	2.0
Number of Poles	Double Pole
NEMA Configuration Code	5-15R
Wire Connection Type	Screw Terminals
