Hubbell Wiring Device-Kellems USB15AC5WWR 15A Tamper Resistant Weather Resistant Duplex Receptacle with USB Ports 5A 125V
- MPN: USB15AC5WWR
- UPC: 883778309168
- PPN: HBL-USB15AC5WWR
- UNSPSC: 39121406
CAD
$107.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

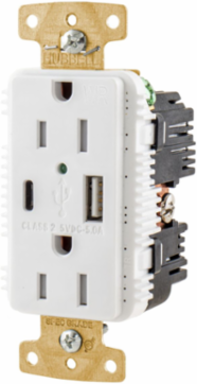

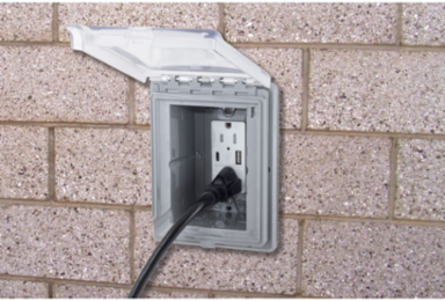

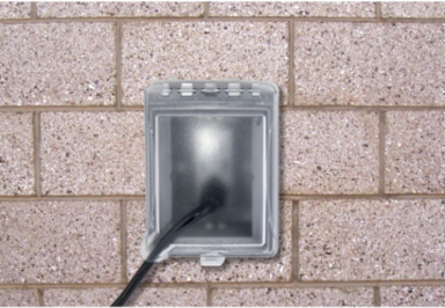

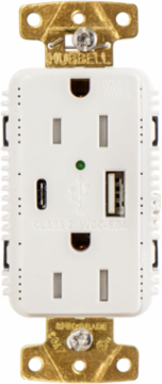

15A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type A & C USB Ports, White
Features
- Weather and Tamper Resistant Commercial Grade
- Combination Ports, One Type A, One Type C
- High Power 5 Amp, 5 Volt USB Output
- USB Ports Rated 10,000 Cycles
Documentation & Downloads
Specifications
Additional
| Voltage | 125V |
|---|---|
| USB Output Voltage | 5V |
| NEMA Rating | 5-15R |
| Operating Temperature | -40 C to 75 C |
| Width | 2.2 in |
| Material - Contacts | Brass |
| Material - Mounting Strap | Brass |
| Material - USB Port | Stainless Steel |
| Flammability Rating | UL 94V-2 |
| Outdoor Suitability | UL 746C f1, Weather Resistant, NEC 406.9 Compliant |
| Amperage | 15A |
|---|---|
| USB Output Current | 5A |
| Number of Poles | 2 |
| USB Port Types | Type A, Type C |
| Number Of Wires | 3 |
| Material - Terminal Screws | Stainless Steel |
| Material - Mounting Screws | Stainless Steel |
| Material - Auto-Ground Staple | Stainless Steel |
| Compliance | cULus Listed to UL498, UL1310, FCC Part 15, NEC 406.9 |
| Color | White |
