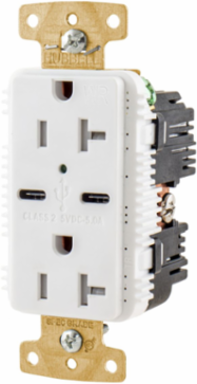

Hubbell Wiring Device-Kellems USB20C5WWR 20A 125V Tamper & Weather Resistant Duplex Receptacle with Two Type C USB Ports
- MPN: USB20C5WWR
- UPC: 883778309373
- PPN: HBL-USB20C5WWR
- UNSPSC: 39121406
CAD
$116.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A/125V Tamper Resistant/Weather Resistant Duplex Receptacle & Type C USB Port, White
Features
- Weather and Tamper Resistant Commercial Grade
- Two Type C USB Ports
- High Power 5 Amp, 5 Volt USB Output
- USB Ports Rated 10,000 Cycles
Specifications
Additional
| Amperage | 20 A |
|---|---|
| USB Output | 5 A, 5 V |
| NEMA Rating | 5-20R |
| Dielectric Voltage | Withstands 1,500 V min |
| Weather Resistant | Yes |
| Number of Poles | 2 |
| Style | Style Line Decorator |
| Material - Terminal Screws | Stainless Steel |
| Material - Mounting Screws | Stainless Steel |
| Material - Auto-Ground Staple | Stainless Steel |
| Flammability | UL 94V-2 |
| Color | White |
| Voltage | 125 V |
|---|---|
| USB Ports | Two Type-C |
| Operating Temperature | -40 C to 75 C |
| Tamper Resistant | Yes |
| Width | 2.200 in |
| Number of Wires | 3 |
| Material - Contacts | Brass Triple-Wipe |
| Material - Mounting Strap | Brass |
| Material - USB Port | Stainless Steel |
| Indicator | Green LED |
| Compliance | cULus Listed to UL498, UL1310, FCC Part 15, NEC 406.9 |
| Country of Origin | CN |
