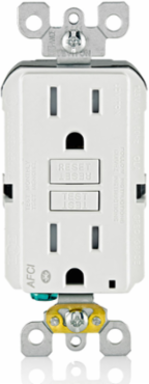

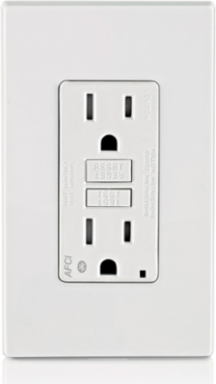

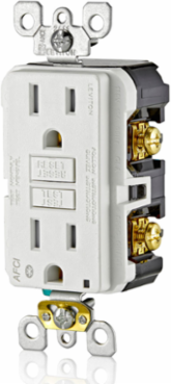

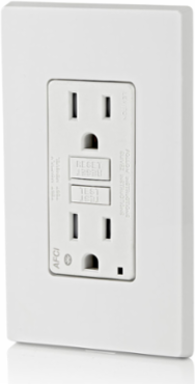

Leviton AFBL1-W 15 Amp Tamper-Resistant AFCI Outlet with Bluetooth, 125 Volt, Wallplate Included
- MPN: AFBL1-W
- UPC: 078477425589
- PPN: LEV-AFBL1-W
CAD
$83.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet with Bluetooth connectivity, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included – White
Features
- CONNECT – Access the latest electrical arc detection firmware with updates via Bluetooth connection
- ADVANCED DIAGNOSTICS – See device status, including trip events using the Decora Digital app
- PROTECT – Designed to detect a wide range of potentially hazardous arc-faults and interrupt power to help reduce the likelihood of electrical fires
- INTUITIVE – LED Indicator light displays power and protection status at-a-glance
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Material Specifications
| Body Material | Polycarbonate |
|---|---|
| Face Material | Thermoplastic |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Product ID | Ratings are permanently marked on device |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Yoke | Zinc-Plated Steel |
| Clamps | Brass |
|---|---|
| Grounding Screw | Plated Steel |
| Notes | w/Wallplate |
| Terminal Accom. | 14-10 AWG |
| Terminal Screws | Plated Steel |
Mechanical Specifications
| Amperage | 15 A |
|---|---|
| Feature | Tamper-Resistant |
| NEMA | 5-15R |
| Product ID | Ratings are permanently marked on device |
| Standards and Certifications | UL/CSA, NEMA WD6, NEMA WD1 |
| Technology | Bluetooth |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14 – 18 in.-lbs |
| Warranty | 2-Year Limited |
| Color | White |
|---|---|
| Grounding | Self-Grounding |
| Pole | 2 |
| Series | AFBL1 |
| Strap Material | Galvanized Steel |
| Terminal Accom. | 14-10 AWG |
| Termination | Back & Side |
| Voltage | 125 VAC |
| Wire | 3 |
Product Features
| Type | Duplex Receptacle |
|---|
| Wallplate | Included |
|---|
Environmental Specifications
| Body Material | Polycarbonate |
|---|---|
| Face Material | Thermoplastic |
| Grounding Screw | Plated Steel |
| Notes | w/Wallplate |
| Terminal Screws | Plated Steel |
| Clamps | Brass |
|---|---|
| Flammability | Rated V-2 per UL 94 |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Operating Temperature | -35°C to 66°C |
| Yoke | Zinc-Plated Steel |
Electrical Specifications
| Dielectric Voltage | Withstands 1250VAC per UL 1699A |
|---|---|
| Operating Temperature | -35°C to 66°C |
| Flammability | Rated V-2 per UL 94 |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
Standards & Certifications
| ANSI | C-73 |
|---|---|
| CSA Technical Information Letter No. M-02A | Yes |
| UL Fed Spec WC-596 | Yes |
| CSA C22.2 No. 42 | Yes |
|---|---|
| NOM | 57 |
| UL1699.A | File E342815 |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|---|
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Dielectric Voltage | Withstands 1250VAC per UL 1699A |
|---|
