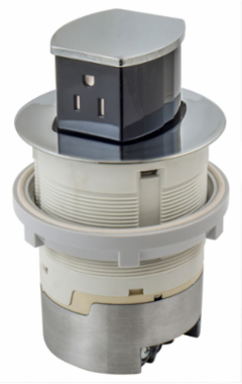

Bryant RCT201CH 15A Flush Mount Kitchen Counter Receptacle, Chrome, 4.20 Inch x 4.20 Inch x 6.48 Inch
Bryant RCT201CH 15A Flush Mount Kitchen Counter Receptacle, Chrome, 4.20 Inch x 4.20 Inch x 6.48 Inch
- MPN: RCT201CH
- UPC: 883778308048
- PPN: HBL-RCT201CH
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$327.68/ EA
Description
15A Kitchen Counter Receptacle, Flush Mount, Chrome
Features
- Spill water tested
- UL Listed for countertop installation.
- Permanent installation ready (suitable for MC cable or non-metallic sheath cable
- Push down to pop-up function is rated for a minimum of 10,000 cycles
- Easy installations - simply drop in and tighten.
Specifications
Specifications
- Country of Origin
- China
- Dimensions
- 4.20 in x 4.20 in x 6.48 in
- Height
- 6.48 in
- Size
- 4.20 in x 4.20 in x 6.48 in
- Width
- 4.20 in
- General Literature Asset 1 Display Text
- Tri-Power Pop-up Receptacles Quick Installation Setup Guide
- General Literature Asset 3 Display Text
- Countertop Pop-Up Receptacle Sell Sheet
- Number Of Poles
- 2
- Style
- Flush
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 16.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet - GTIN - Package
- 70883778308047
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
ColorChrome
Length4.20 in
TypePower Only
Voltage Rating Description125 V
General Literature Asset 2 Display TextTri-Power Pop-up Receptacles Quick Installation Setup Guide
Nema Rating5-15R
Number Of Wires3
Freight Class Code06168002
Image Actual Or RepresentativeA
SeriesCountertop Receptacle
BOX SIZE6.500x22.500x9.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00883778308048
Case Weight16.500 lb.
Pallet Height45.500 in
Pallet Weight924.000 lb.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
