Bryant

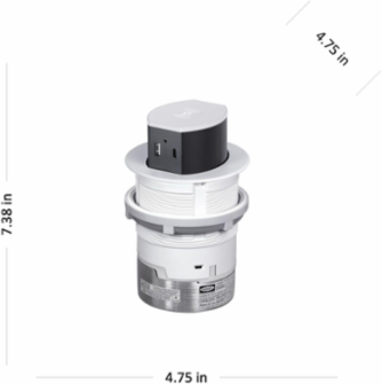

Bryant RCT620W 20A Tri-Power Pop Up Counter Receptacle, Surface Mount, 125V, White, 4.75 Inch x 4.75 Inch x 7.38 Inch

20A Tri-Power Pop Up Counter Receptacle, Surface Mount, 125V, White, 4.75 Inch x 4.75 Inch x 7.38 Inch
20A Tri-Power Pop Up Counter Receptacle, Surface Mount, 125V, White, 4.75 Inch x 4.75 Inch x 7.38 Inch
  • MPN: RCT620W
  • UPC: 883778310560
  • PPN: HBL-RCT620W
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$559.20/ EA

Description

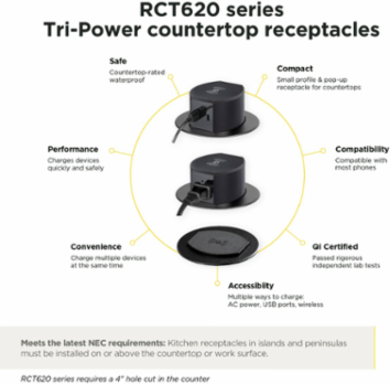

20A Tri-Power Pop Up Counter Receptacle, Surface Mount, White

Features

  • Spill water tested
  • UL Listed for countertop installation.
  • Permanent installation ready (suitable for MC cable or non-metallic sheath cable
  • Easy installations - simply drop in and tighten.
  • Charge multiple devices at the same time
  • LED Light indicates power to the ports
  • Type A and C USB ports
  • Durable: Push-down to pop-up function is rated for a minimum of 10,000 cycles
  • Stability: Tower won’t wiggle in enclosure
  • Accepts non-metallic sheathed cable and/or metal conduit
  • Suitable for 20 Amp circuit, end of line
  • Surface Mount

Specifications

Specifications

Country of Origin
China
Dimensions
4.75 in x 4.75 in x 7.38 in
SAP Material Group 3
008
Cable Entry
Kos in Bottom
Height
7.38 in
Length
4.75 in
Number of Outlet
Combo Single/USB
Special Features
Surface Mount
Sub Brand
Under Counter Boxes
Width
4.75 in
General Literature Asset 1 Display Text
TRI-POWER POP-UP COUNTERTOP RECEPTACLES
General Literature Asset 3 Display Text
Tri-Power Pop-up Receptacles Quick Installation Setup Guide
Nema Rating
5-20R
Number Of Poles
2
Style
Surface
Freight Class Code
06168002
Image Actual Or Representative
A
Construction
Fabricated
Series
Countertop Receptacle
BOX SIZE
9.000x25.000x10.500 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
00883778310560
Pallet Height
48.000 in
Pallet Weight
640.000 lb.
Current / Amperage Rating20 A
Industry Standard(s)UL
ApplicationPower on Counter Top
ColorWhite
Knockouts1 - 1/2 Inch Knockout
MountingIn Kitchen Counter Top
Size4.75 in x 4.75 in x 7.38 in
StandardUL
TypeWireless, USB & Power
Voltage Rating Description125 V
General Literature Asset 2 Display TextTri-Power Pop-up Receptacles Quick Installation Setup Guide
Mounting TypeIn Kitchen Counter Top
Number Of OutletsCombo Single/USB
Number Of Wires3
Class CodeA80
Harmonization Code8536698000
Sub Class CodeA80A835
Material220 Meunt
Base Unit of MeasureEA
Carton - Gross Weight per Pack17.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet Length48.000 in
Pallet Width40.000 in

Certifications
