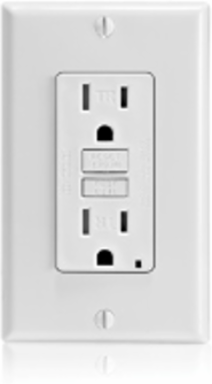

Leviton X7599-FI X7599-FI, 15 Amp
- MPN: X7599-FI
- PPN: LEV-1451-WBK
CAD
$2.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Slim is in. New SmartlockPro Slim GFCIs Install Easily Industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro Slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque. Tamper-Resistant to meet current NEC Requirements for new or renovated residential construction.
Specifications
Standards and Certifications
| NEMA | WD-6 |
|---|---|
| UL498 | File E13399 |
| NOM | 057 |
| MIL-SPEC | A-A-55459-SB |
| ANSI | C-73 |
|---|---|
| CSA C22.2 No. 42 | File LR-57811 |
| UL 943 | File E48380 |
| UL Fed Spec WC-596 | Yes |
Material Specifications
| Face Material | Thermoplastic |
|---|---|
| Line Contacts | Brass Double-Wipe .031 Thick |
| Grounding Screw | Plated Brass |
| Notes | w/ Wallplate |
| Body Material | Polycarbonate |
|---|---|
| Terminal Screws | Plated Steel |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | 14-10 AWG |
|---|
Product Features
| Feature | SmartlockPro Slim |
|---|---|
| Voltage | 125 Volt |
| Pole | 2 |
| Trip Level | Class A, 5mA plus or minus 1mA |
| Face Material | Thermoplastic |
| Grounding | Self-Grounding |
| Strap Material | Galvanized Steel |
| UL Fed Spec WC-596 | Yes |
| Notes | w/ Wallplate |
| Amperage | 15 Amp |
|---|---|
| NEMA | 5-15R |
| Wire | 3 |
| Termination | Back & Side |
| Body Material | Polycarbonate |
| Color | Ivory |
| Standards and Certifications | UL/CSA |
| Warranty | 2-Year Limited |
| Country of Origin | Mexico |
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -35C-+66C |
|---|
Electrical Specifications
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
|---|
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
|---|
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
