Thomas & Betts 167LRT-F5240 Loadbreak Bolted Elbow with Tap
- MPN: 167LRT-F5240
- UPC: 783786560523
- PPN: T-B-167LRT-F5240
CAD
$1695.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

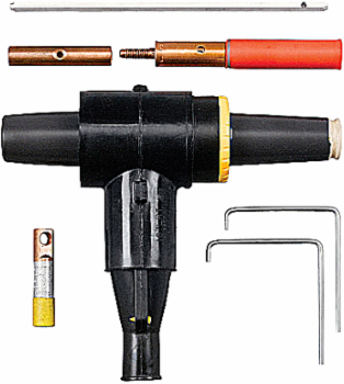

200 Amp, 15kV, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.640 inch to 0.820 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. Includes 02800X Bi-Metal Contact.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Includes 02800X Bi-Metal Contact.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
IGCC4586 Electrical connector assembly
TypeLoadbreak Bolted Elbow with Tap
Application15kV, 200 Amps
SizeCable Insulation Diameter 0.640 inch to 0.820 inch.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)4x10.75x9.25
