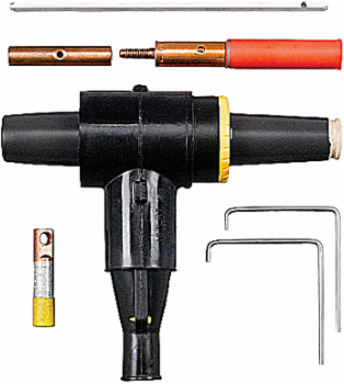

Thomas & Betts 167LRT-G5220-S Loadbreak Bolted Elbow with Tap
- MPN: 167LRT-G5220-S
- UPC: 007511424882
- PPN: T-B-167LRT-G5220-S
CAD
$1770.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15KV, 200 Amp, Loadbreak Bolted Elbow with Tap, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. 200ECS Jacket Seal Included.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Includes 02800X Bi-Metal Contact. |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62. |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Bolted Elbow with Tap |
| Application | 15kV, 200 Amps |
| Size | Cable Insulation Diameter 0.760 inch to 0.950 inch. |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | Fully Submersible |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 3.31x14.69x9.94 |
|---|
