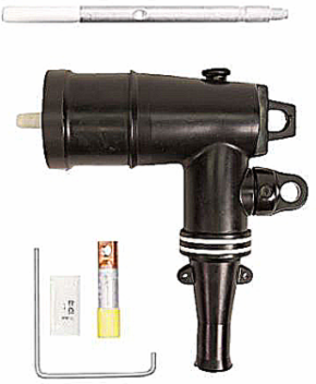

Thomas & Betts 162LR-A-5240 Loadbreak Elbow Connector with Test Point
- MPN: 162LR-A-5240
- UPC: 075114186285
- PPN: T-B-162LR-A-5240
CAD
$218.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .575 inch - .740 Inch Cable Insulation Diameter, 1/0 Stranded Wire Size, Bi-Metal Compression Lug
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
ApplicationThe 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Conductor Range1/0 Stranded Wire Size
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) V.D. Cap-Peroxide, (1) Installation Instructions
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
