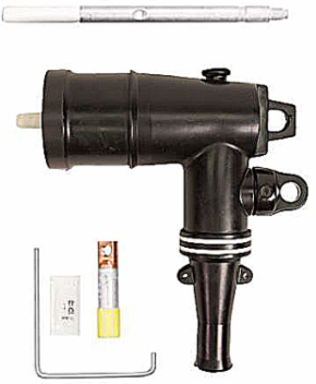

Thomas & Betts 162LR-A-2220 Loadbreak Elbow Connector with Test Point

MPN: 162LR-A-2220
UPC: 075114185622
PPN: T-B-162LR-A-2220

$265.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point.
Standard	ANSI/IEEE Standard 386
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water.

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point
Application	The 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Conductor Range	Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	(1) Elbow Connector Housing, (1) Copper Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) V.D. Cap-Peroxide, (1) Installation Instructions
