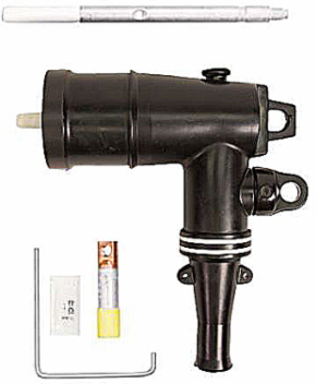

Thomas & Betts 162LR-B2230-SG3 Loadbreak Elbow Connector with Test Point

MPN: 162LR-B2230-SG3
UPC: 075114331876
PPN: T-B-162LR-B2230-SG3

$411.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .635 inch - .905 inch Cable Insulation Diameter, #1 Stranded/Compressed or 1/0 Solid/Compact Wire Size, Copper Compression Lug, Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Non-Corrosive Capacitive Test Point.
Standard	ANSI/IEEE Standard 386
Conductor Range	#1 Stranded/Compressed or 1/0 Solid/Compact Wire Size
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, V.D. Cap Peroxide, Installation Instructions.

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point
Application	Designed for connecting to and operating 15kV class, 200 Amp Distribution Apparatus.
Size	.635 inch - .905 inch Cable Insulation Diameter
Material	Housing - EPDM Rubber
Voltage Rating	15kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
