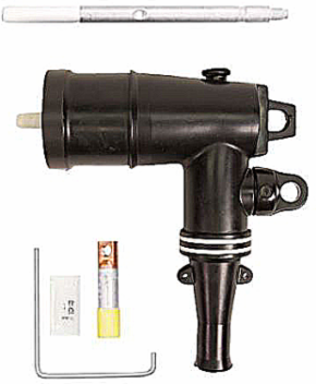

Thomas & Betts 162LR-D5220-SG3 Loadbreak Elbow Connector with Test Point
- MPN: 162LR-D5220-SG3
- UPC: 075114333054
- PPN: T-B-162LR-D5220-SG3
CAD
$362.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, #2 Stranded/Compressed or #1 Solid/Compact Wire Size, Bi-Metal Compression Lug, Sealing Kit - Cold Shrinkable Seal with Copper Braid and Constant Force Spring.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- #2 Stranded/Compressed or #1 Solid/Compact Wire Size,
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, V.D. Cap Peroxide, Installation Instructions.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
ApplicationDesigned for connecting to and operating 15kV class, 200 Amp Distribution Apparatus.
Size.890 inch - 1.220 Inch Cable Insulation Diameter
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
